Advanced Tire Pressure Monitoring for Large Scale Fleet Management

Boshi Tire Pressure Monitoring is a wireless tire safety solution designed for motorcycles, passenger cars, trucks, and other vehicles that require continuous tire condition monitoring. The system uses pressure and temperature sensors to collect real-time tire data and wirelessly transmit the information to a compatible dashcam or display terminal.

Instead of relying on manual tire pressure checks, the system allows drivers to monitor pressure and temperature while driving. When a measured value reaches a preset abnormal threshold, the connected host can issue an alert to help identify potential tire-related risks at an earlier stage.

The solution is available with external or internal sensors and can be integrated with Boshi motorcycle dashcams and car dashcams. This makes it suitable for individual vehicles as well as motorcycle fleets, commercial vehicles, touring vehicles, and fleet management applications.

Real-Time Tire Condition Monitoring

The Tire Pressure Monitoring continuously measures tire pressure and temperature during vehicle operation. Each sensor monitors the corresponding tire and wirelessly transmits the collected information to the compatible host device.

The pressure measurement range is 0–8 Bar, while the temperature measurement range is -40°C to 120°C. With a wireless transmission distance of up to 10 meters under suitable conditions, the sensors can communicate with compatible dashcam hosts without additional wiring around the wheels.

1. Pressure and Temperature Data

The sensors collect both pressure and temperature information, giving drivers a more complete view of tire condition instead of relying on pressure readings alone.

2. Configurable Warning Alerts

When pressure or temperature reaches a configured warning threshold, the connected host can issue an alert. Alarm parameters can be adjusted according to different vehicle types, tire specifications, and operating requirements.

3. Wireless Communication

Sensor information is transmitted wirelessly to the compatible dashcam or display terminal. This reduces additional wiring around the wheels and simplifies integration with existing vehicle electronics.

External and Internal Sensor Configurations

Boshi provides two sensor installation methods to accommodate different maintenance preferences, vehicle structures, and retrofit requirements. Buyers can select the appropriate configuration based on installation conditions and expected service life.

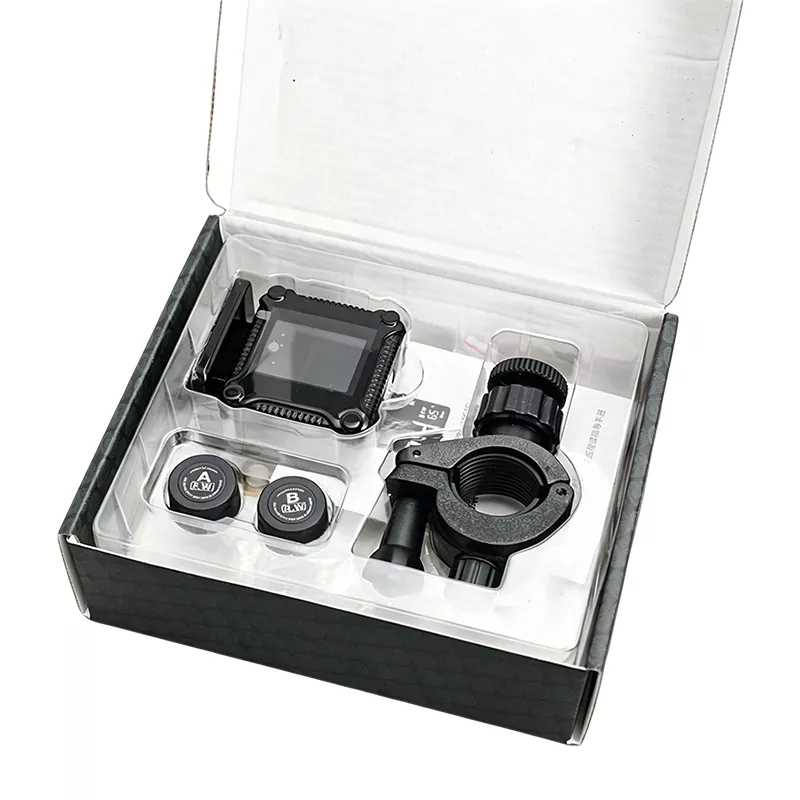

1. External Sensor

The external sensor is mounted directly to the tire valve and normally does not require tire removal during installation. This makes it suitable for motorcycles, passenger vehicles, and retrofit projects where installation simplicity is important. Under normal operating conditions, the expected service life is approximately 2 years.

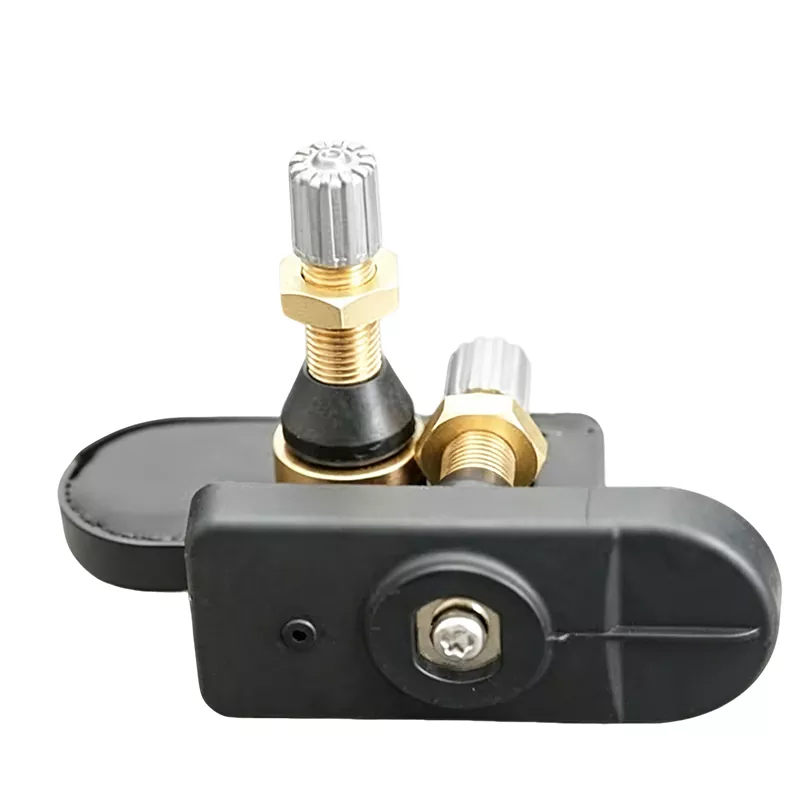

2. Internal Sensor

The internal sensor is installed inside the tire and provides a more integrated installation solution. Its position offers additional protection from the external environment. Under normal operating conditions, the expected service life is approximately 5 years.

Technical Specifications

Integration With Dashcam Safety Systems

For vehicle electronics manufacturers and fleet operators, tire data becomes more useful when combined with driving video and other vehicle information. Boshi can match the sensor system with compatible motorcycle and car dashcams so that tire condition information can be displayed together with driving records.

This creates a more integrated monitoring setup in which tire condition, driving video, and optional positioning or safety sensor data can be managed through compatible equipment.

1. Motorcycle Dashcam Integration

The Tire Pressure Monitoring can be used with single-lens, dual-lens, and panoramic motorcycle dashcams. It is particularly suitable for long-distance touring motorcycles and vehicles operating in conditions where tire pressure and temperature may change during extended riding.

2. Car and Truck Integration

The monitoring module can also be matched with passenger car, commercial vehicle, and truck recording systems. Fleet operators can use tire condition information as part of routine vehicle inspection and maintenance management.

Application Scenarios

Boshi's tire monitoring solution is intended for vehicle applications where continuous information about tire condition is useful during operation.

1. Motorcycle Touring

Long-distance motorcycle riding involves extended operating periods and changing road or weather conditions. Continuous pressure and temperature information gives riders additional data for evaluating tire condition throughout a journey.

2. Passenger Cars

For private vehicles and family cars, the system provides a convenient alternative to frequent manual pressure checks and can notify the driver when abnormal tire conditions are detected.

3. Delivery and Fleet Vehicles

Delivery motorcycles, logistics vehicles, and commercial fleets can integrate tire data with existing dashcam systems to support vehicle condition monitoring across multiple units.

4. High-Speed and Long-Distance Driving

Vehicles operating for extended periods at higher speeds can benefit from continuous pressure and temperature monitoring, giving drivers additional information when tire conditions change during operation.

Compatibility With Vehicle Safety Electronics

The monitoring module can be combined with other Boshi vehicle electronics to create a broader safety and monitoring system. Depending on the selected configuration, it can work alongside motorcycle or car dashcams, GPS trackers, millimeter-wave blind spot radar, and other vehicle sensors.

This modular approach allows distributors and vehicle electronics manufacturers to select the functions required for a specific project instead of installing an unnecessary standalone system.

Factory Support for OEM Projects

Boshi provides technical support for customers integrating tire monitoring with dashcam systems. Signal matching and communication debugging can be performed according to the selected host device and sensor configuration.

1. Sensor and Dashcam Matching

The factory supports communication and signal matching between the tire sensors and compatible dashcam hosts to help ensure stable data transmission and information display.

2. OEM Customization

For distributors and vehicle electronics brands, OEM options can include sensor housing LOGO printing and selected product configurations according to project requirements.

3. Certification Documentation

Boshi can provide available product certification and technical documents required for overseas market access and customs clearance according to the selected product configuration and destination market.

What B2B Buyers Should Consider

When comparing different vehicle safety accessories, buyers should consider whether the system provides useful tire information without creating unnecessary installation or maintenance complexity.

Boshi combines pressure and temperature sensing, wireless transmission, configurable alarms, and compatibility with dashcam systems. External sensors provide a simpler retrofit option, while internal sensors offer a more integrated installation solution.

For OEM manufacturers, distributors, and fleet equipment suppliers, the modular design also makes it possible to combine tire monitoring with existing vehicle recording and safety electronics.

FAQ About Tire Monitoring

1. What tire pressure range can the system measure?

The specified pressure measuring range is 0–8 Bar, covering common operating requirements for motorcycles, passenger cars, and many commercial vehicle applications. The appropriate sensor should be selected according to the actual vehicle and tire specifications.

2. What temperature range can the sensors measure?

The specified temperature measuring range is -40°C to 120°C. This allows the sensors to monitor tire temperature across a broad range of operating conditions.

3. What is the difference between external and internal sensors?

An external sensor is installed on the tire valve and can normally be installed without removing the tire, making it suitable for convenient retrofit applications. An internal sensor is installed inside the tire and provides a more integrated installation method, but tire removal is required during installation.

4. Can the system work with a motorcycle dashcam?

Yes. The system is designed to be compatible with Boshi motorcycle dashcams and can transmit tire pressure and temperature information to a compatible host device. It can be used with single-lens, dual-lens, and panoramic recording systems according to the selected configuration.

5. Can the alarm threshold be customized?

Yes. Pressure and temperature alarm thresholds can be configured according to different vehicle types, tire specifications, and application requirements.

6. How long do the sensor batteries last?

The expected service life is approximately 2 years for the external sensor and approximately 5 years for the internal sensor under normal operating conditions. Actual battery life can vary depending on usage and environmental conditions.

7. Can the system be integrated with other vehicle safety products?

Yes. It can be combined with compatible dashcams, GPS trackers, millimeter-wave blind spot radar, and other vehicle electronics to build an integrated vehicle monitoring solution.

8. What is the standard lead time?

Standard production lead time depends on the selected sensor type, quantity, configuration, and material availability. Please provide the required model and order quantity so the production schedule can be confirmed.

9. Can Boshi provide OEM customization?

Yes. Boshi supports OEM requirements such as sensor housing LOGO printing, selected configurations, communication matching, and technical debugging for compatible dashcam systems.

Select the Right Tire Monitoring Configuration

The appropriate solution should be selected according to vehicle type, sensor installation method, required pressure and temperature range, battery life, dashcam compatibility, and fleet management requirements. External sensors are suitable for simpler retrofit projects, while internal sensors are appropriate when a more integrated installation is preferred.

For project evaluation, provide your vehicle type, sensor preference, required monitoring functions, compatible dashcam model if applicable, estimated order quantity, and target market. Boshi can recommend a suitable Tire Pressure Monitoring configuration and support the required technical integration.
