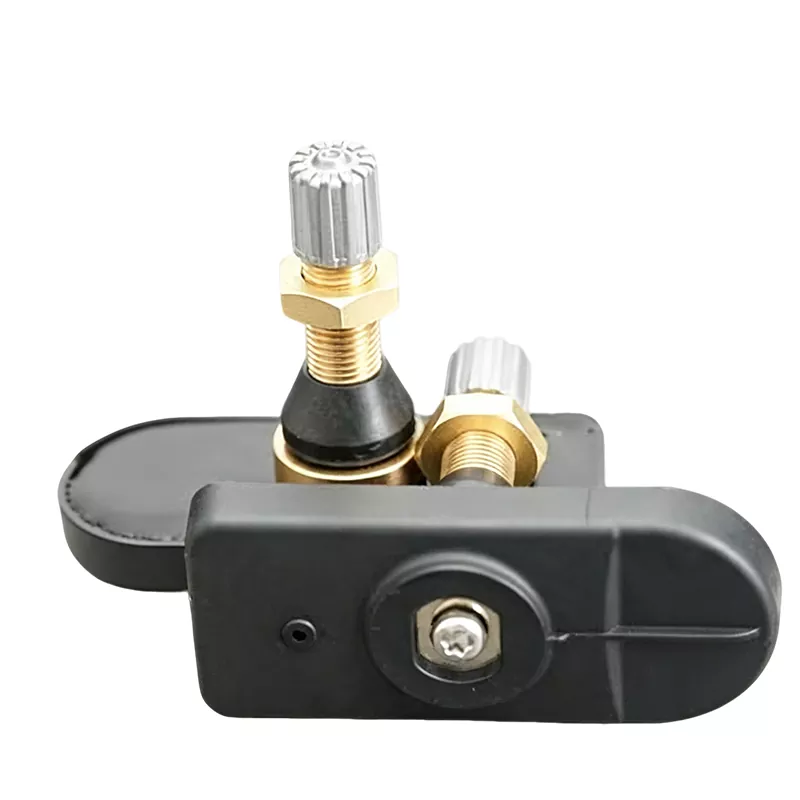

Bluetooth-Enabled Tire Pressure Monitoring System

With a dual communication architecture combining 2.4GHz Bluetooth Low Energy and 125kHz LF wake-up technology, the Bluetooth-Enabled Tire Pressure Monitoring System provides stable data transmission even in complex vehicle environments. It supports tire pressure detection from 0–800kPa, temperature monitoring from -30℃ to 85℃, and a battery life of more than 3 years, making it suitable for OEM projects, aftermarket upgrades, and bulk vehicle safety solutions.

Intelligent Tire Monitoring Solution for Different Vehicle Applications

Traditional tire pressure monitoring sensors often face problems such as short battery life, unstable communication, and inaccurate operating condition recognition. BOSHI Bluetooth-Enabled Tire Pressure Monitoring System adopts an integrated MEMS sensor architecture that combines pressure, temperature, vibration, and voltage monitoring into one compact unit, helping users detect potential tire risks before they become safety problems.

The system automatically identifies different vehicle conditions including parking, driving, inflation, and leakage situations. Through intelligent power management, the sensor adjusts data transmission frequency according to operating status, reducing energy consumption while maintaining accurate tire monitoring.

The 2.4GHz BLE communication module provides fast wireless data transmission, while the 125kHz LF low-frequency function enables reliable sensor wake-up and pairing. This dual communication design improves signal stability in environments with metal wheels, vehicle electronics interference, or complex driving conditions.

With an open communication protocol, the sensor can connect with mobile applications, vehicle displays, TBOX systems, and fleet management platforms, providing flexible integration options for automotive brands and importers.

Performance Features Designed for Commercial Applications

1. High-Precision Pressure and Temperature Monitoring

The sensor supports a wide pressure range of 0–800kPa, covering the requirements of motorcycles, passenger cars, electric vehicles, and light commercial vehicles. Pressure accuracy can reach ±5kPa, while tire temperature monitoring maintains accuracy within ±3℃ across different operating environments.

The system continuously monitors abnormal conditions such as slow leakage, rapid pressure loss, and overheating caused by long-distance or high-speed driving, helping reduce risks including tire blowouts and unstable handling.

2. Low-Power Design with Long Service Life

Powered by a built-in 3V lithium battery, the sensor provides more than 3 years of normal operating life. The intelligent multi-mode sleep system allows the device to remain in ultra-low-power status during transportation and parking, while automatically increasing monitoring frequency after detecting vehicle movement.

This long-life design reduces maintenance frequency and improves the product competitiveness for distributors, vehicle manufacturers, and fleet operators.

3. Stable BLE and LF Dual Communication

The combination of BLE high-frequency transmission and LF low-frequency wake-up technology ensures stable communication between sensors and receiving terminals. The system can maintain reliable data transmission in environments such as underground parking areas, high-speed driving conditions, and vehicles with metal wheel structures.

The standardized BLE data frame allows easy integration with different software platforms, making it suitable for customized vehicle projects and aftermarket solutions.

Product Reliability and Factory Testing

BOSHI Bluetooth-Enabled Tire Pressure Monitoring System undergoes multiple reliability tests before shipment to ensure stable performance in different climates and driving environments.

The sensor is tested under a wide temperature range from -30℃ to 85℃, including vibration resistance, communication stability, battery performance, and long-term operation testing. The industrial-grade components ensure continuous monitoring performance during high-temperature driving, rainy weather, and rough road conditions.

For global markets, the product supports international compliance requirements including CE, FCC, and RoHS certifications, helping distributors and importers meet local sales requirements.

Application Scenarios

1. Motorcycle and Electric Vehicle Safety Upgrade

For motorcycle and electric vehicle users, tire conditions directly affect riding safety. The system provides real-time monitoring of tire pressure and temperature, allowing riders to identify low-pressure, overheating, or leakage problems before accidents occur. Its compact design and wireless communication make it suitable for aftermarket installation without complicated wiring modifications.

2. Fleet Management and Commercial Transportation

For delivery fleets, logistics vehicles, and commercial operators, tire failures can increase operating costs and downtime. The TPMS system allows fleet managers to monitor multiple vehicles through connected platforms and identify abnormal tire conditions in advance. By reducing unexpected tire problems, businesses can improve vehicle availability and lower maintenance expenses.

3. OEM Vehicle Integration Projects

For vehicle manufacturers and solution providers, BOSHI provides standardized communication protocols and flexible integration support. The sensor can connect with vehicle TBOX systems, dashboards, and intelligent vehicle platforms for factory-installed applications.

Why Choose BOSHI Bluetooth-Enabled Tire Pressure Monitoring System?

BOSHI provides a complete smart TPMS solution combining high accuracy, low power consumption, stable wireless communication, and flexible integration capability. Compared with traditional tire pressure monitoring products, this system offers longer battery life, stronger communication reliability, and broader vehicle compatibility. It supports motorcycles, electric vehicles, passenger cars, and commercial vehicles, making it an ideal choice for international distributors, importers, and automotive brands looking for reliable tire safety products.

Frequently Asked Questions

1. Does this Bluetooth TPMS require an additional display screen?

No. The system supports direct Bluetooth communication with smartphones, vehicle terminals, and compatible platforms, reducing installation complexity and hardware costs.

2. What vehicles can use this tire pressure monitoring system?

The system is compatible with motorcycles, electric motorcycles, passenger cars, and light commercial vehicles. It can be used for both OEM installation and aftermarket upgrades.

3. How long can the sensor battery last?

The built-in 3V lithium battery provides more than 3 years of operating life under normal usage conditions, reducing replacement frequency and maintenance costs.

4. Can the system work in extreme temperatures?

Yes. The sensor supports stable operation from -30℃ to 85℃ and is designed for different climate conditions including hot, cold, and humid environments.

5. Can importers customize the communication system?

Yes. BOSHI supports integration with mobile apps, vehicle TBOX systems, and fleet management platforms through standardized communication protocols.

Recommended Solution

For brands, importers, and automotive distributors searching for a reliable Bluetooth-enabled tire pressure monitoring solution, BOSHI provides a high-performance TPMS sensor with MEMS multi-sensor technology, BLE + LF dual communication, intelligent power management, and more than 3 years battery life.

With accurate pressure monitoring, temperature detection, smart alerts, and flexible system integration, it delivers a complete tire safety solution for motorcycles, electric vehicles, passenger cars, and commercial fleets worldwide.
